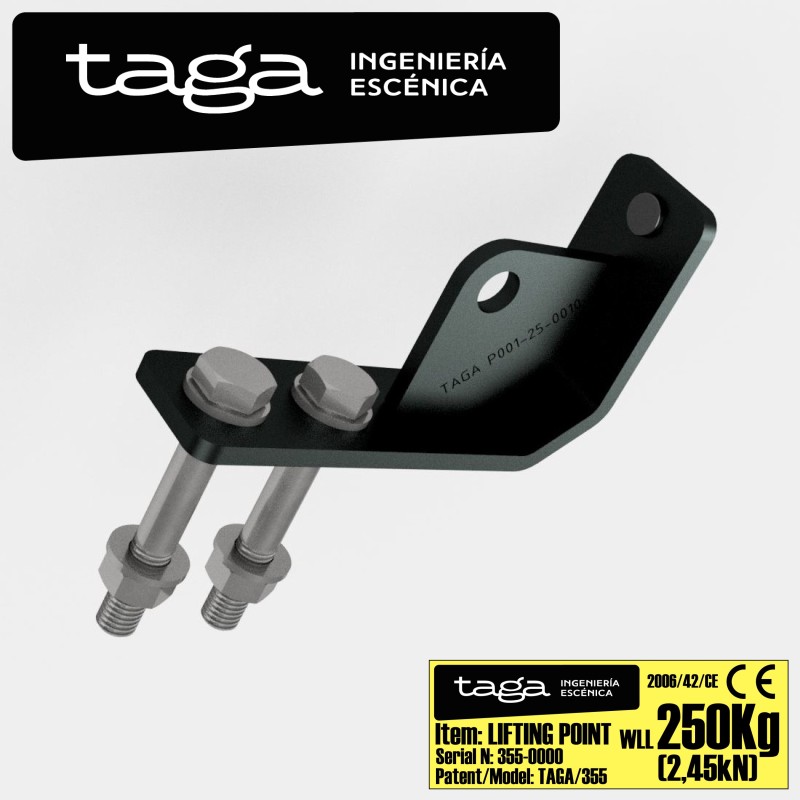

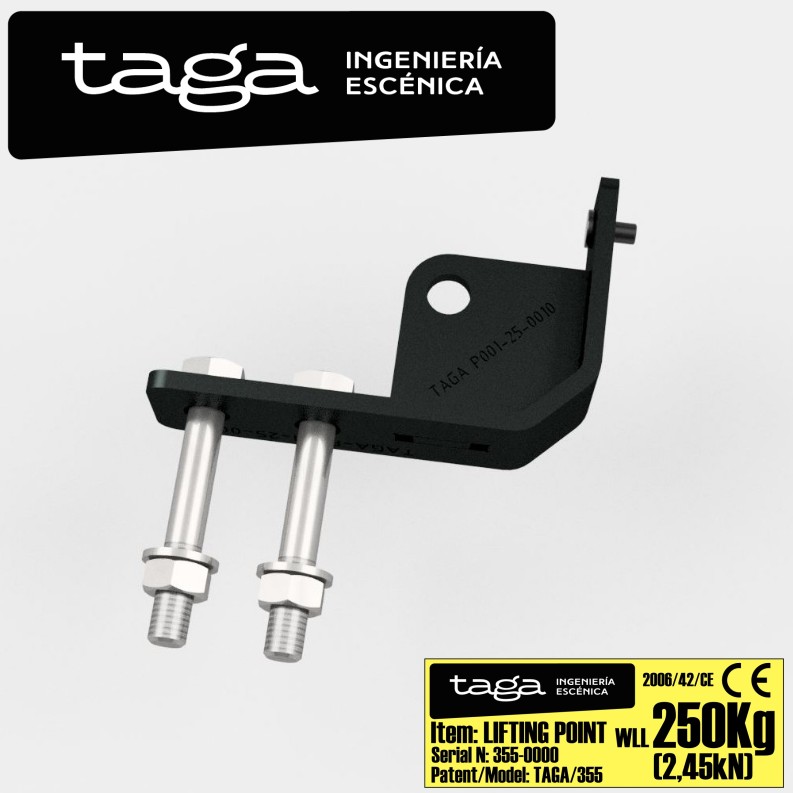

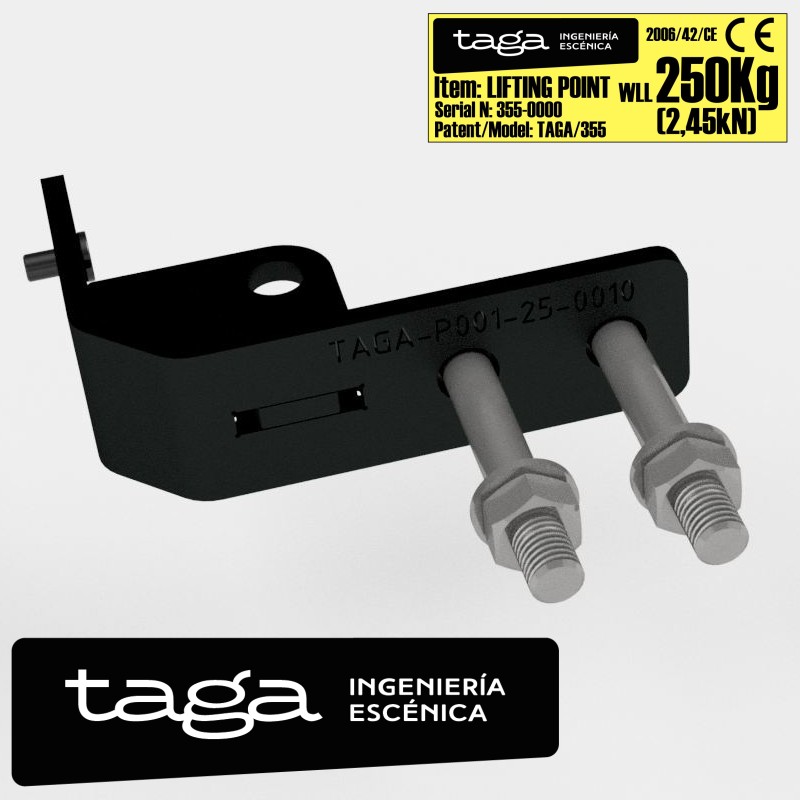

Model 355_245 – Certified rigging point 90º for square or rectangular tube

The Model 355_245 is a certified rigging point 90º, designed for professional applications in theatres, stage scenery, and technical stage installations.

This accessory provides a safe fixing point at the 90° intersection of square or rectangular tubing, facilitating the installation of suspended elements, rigging systems, and auxiliary components in stage structures.

Thanks to its robust design and compatibility with standard metal profiles, this rigging point is ideal for auditoriums, stages, and productions requiring safe, fully documented solutions in compliance with current regulations.

Technical Specifications of the certified rigging point 90º

The Model 355_245 rigging point features:

• Working Load Limit (WLL/CMU): 250 kg (2.45 kN)

• External dimensions: 118 × 100 × 35 mm

• Pin diameter: Ø 12 mm

• Compatible with square or rectangular profiles

• Designed for 90° joints

Each unit is supplied with an individual serial number, ensuring full traceability in professional environments.

Fixing and Installation System

The fixing system is carried out using:

• M10 bolts DIN 931/933

• Grade 8.8 steel

• Included centring component

This ensures a firm and stable installation in stage structures and theatrical machinery.

Rigging Hardware Compatibility

This rigging point is compatible with common stage rigging components such as:

• Straight shackle A.R. 3/8 – 1 Tn

• Wedge socket clamp 5–6.5 mm

• M10 turnbuckle

Its versatility makes it suitable for both temporary and permanent structures.

Included Documentation and CE Marking

The Model 355_245 is supplied with all required documentation for professional use:

• Instruction manual

• EC Declaration of Conformity

• Black oxide coated bolts

In stage environments, having a certified rigging point with CE marking is essential to guarantee the safety of technicians, performers, and the audience.

Applications in Theatres and Stage Scenery

This accessory is ideal for stage engineering projects, technical audits, or certified rigging installations in theatres requiring compact, safe, and regulation-compliant solutions.
